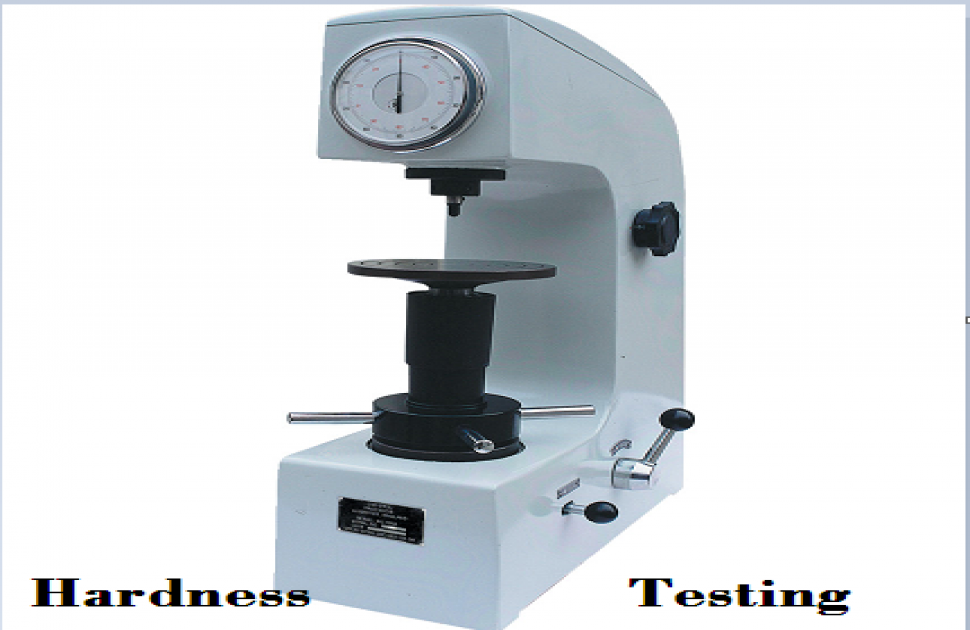

Hardness Testing

Hardness Testing

Hardness Testing:

Hardness is the resistance of a material to localized deformation. The term can apply to deformation from indentation, scratching, cutting or bending. In metals, ceramics and most polymers, the deformation considered is plastic deformation of the surface.

For elastomers and some polymers, hardness is defined at the resistance to elastic deformation of the surface.

The lack of a fundamental definition indicates that hardness is not a basic property of a material, but rather a composite one with contributions from the yield strength, work hardening, true tensile strength, modulus, and others factors.

Hardness measurements are widely used for the quality control of materials because they are quick and considered to be nondestructive tests when the marks or indentations produced by the test are in low stress areas.

There are a large variety of methods used for determining the hardness of a substance, as can be seen below:

hardness types

The most common methods are indicated below:

1.1.  Mohs Hardness Test:

 One of the oldest ways of measuring hardness was devised by the German mineralogist Friedrich Mohs in 1812. The Mohs hardness test involves observing whether a materials surface is scratched by a substance of known or defined hardness.

The numerical values to this physical properties are the mineralsranked along with Mohs scale, composed of 10 minerals that have been given arbitrary hardness values. Mohs hardness test, facilitate the identification of minerals in the field, but is not suitable for accurately gauging the hardness of industrial materials such as steel or ceramics.

For engineering materials, a variety of instruments have been developed over the years to provide a precise measure of hardness. Many apply a load and measure the depth or size of the resulting indentation. Hardness can be measured on the macro-, micro- or nano- scale.

Mohs hardness test

1.2.  Brinell Hardness Test:

 The oldest of the hardness testing methods in common use on engineering materials today is the Brinell hardness test, invented by Dr. J. A. Brinell in Sweden in 1900. The Brinell test uses a desktop machine to apply a specified load with a hardened sphere of a specified diameter.

The Brinell hardness number, or simply the Brinell number, is obtained by dividing the load used  (kg or pounds) by the measured surface area of the indentation, (in square millimeters or square pounds), left on the test surface.

Brinell test

The Brinell test is frequently used to determine the hardness metal forgings and castings that have a large grain structures. The Brinell test provides a measurement over a fairly large area that is less affected by the course grain structure of these materials than are Rockwell or Vickers tests.

A wide range of materials can be tested using a Brinell test simply by varying the test load and indenter ball size. Brinell testing is typically done on iron and steel castings using a 3000 Kg test force and a 10 mm diameter ball. A 1500 kilogram load is usually used for aluminum castings.

Copper, brass and thin stock are frequently tested using a 500 Kg test force and a 10 or 5 mm ball.  In Europe Brinell testing is done using a much wider range of forces and ball sizes and it is common  to perform Brinell tests on small parts using a 1 mm carbide ball and a test force as low as 1 kg.

The low load tests are commonly referred to as baby Brinell tests. A value reported as “60 HB 10/1500/30” means that a Brinell Hardness of 60 was obtained using a 10 mm diameter ball with a 1500 kilogram load applied for 30 seconds.

1.3. Rockwell Hardness Test:

The Rockwell hardness test also uses a machine to apply a specific load and then measure the depth of the resulting impression. The indenter may either be a steel ball of some specified diameter or a spherical diamond-tipped cone of 120° angle and 0.2 mm tip radius, called brale.

minor load of 10 kg is first applied, which causes a small initial penetration to seat the indenter and remove the effects of any surface irregularities. Then, the dial is set to zero and the major load is applied. Upon removal of the major load, the depth reading is taken while the minor load is still on.

The hardness number may then be read directly from the scale. The indenter and the test load used determine the hardness scale that is used (A, B, C, etc.).

For soft materials such as copper alloys, soft steel, and aluminum alloys a 1/16″ diameter steel ball is used with a 100-kilogram load and the hardness is read on the “B” scale.

In testing harder materials, hard cast iron and many steel alloys, a 120 degrees diamond cone is used with up to a 150 kilogram load and the hardness is read on the “C” scale.

rockwell test

There are several Rockwell scales other than the “B” & “C” scales, (which are called the  common scales). A properly reported Rockwell value will have the hardness number followed by “HR” (Hardness Rockwell) and the scale letter.

For example, 50 HRB indicates that the material has a hardness reading of 50 on the B scale.  The letters used in Rockwell scales are:

A – Cemented carbides, thin steel and shallow case hardened steel; B – Copper alloys, soft steels, aluminum alloys, malleable iron, etc.;

C   –  Steel,  hard  cast  irons,  pearlitic  malleable  iron,  titanium,  deep  case  hardened   steel and other materials harder than B 100;

D – Thin steel and medium case hardened steel and pearlitic malleable iron; E – Cast iron, aluminum and magnesium alloys, bearing metals;

F – Annealed copper alloys, thin soft sheet metals;

G – Phosphor bronze, beryllium copper, malleable irons; H – Aluminum, zinc, lead;

K, L, M, P, R, S, V – Bearing metals and other very soft or thin materials, including plastics.
