Introduction
Non-Destructive Testing (NDT) is a cornerstone of asset integrity and safety across industries such as oil & gas, power generation, aerospace, and manufacturing. Among the advanced NDT methods, Electromagnetic Acoustic Transducer (EMAT) inspection has emerged as a powerful tool, offering unique capabilities for material evaluation without the need for liquid couplants. Unlike conventional ultrasonic testing, EMATs generate and receive ultrasonic waves directly in the material through electromagnetic interaction, making them particularly useful in environments where surface conditions or accessibility pose challenges.
How EMAT Works

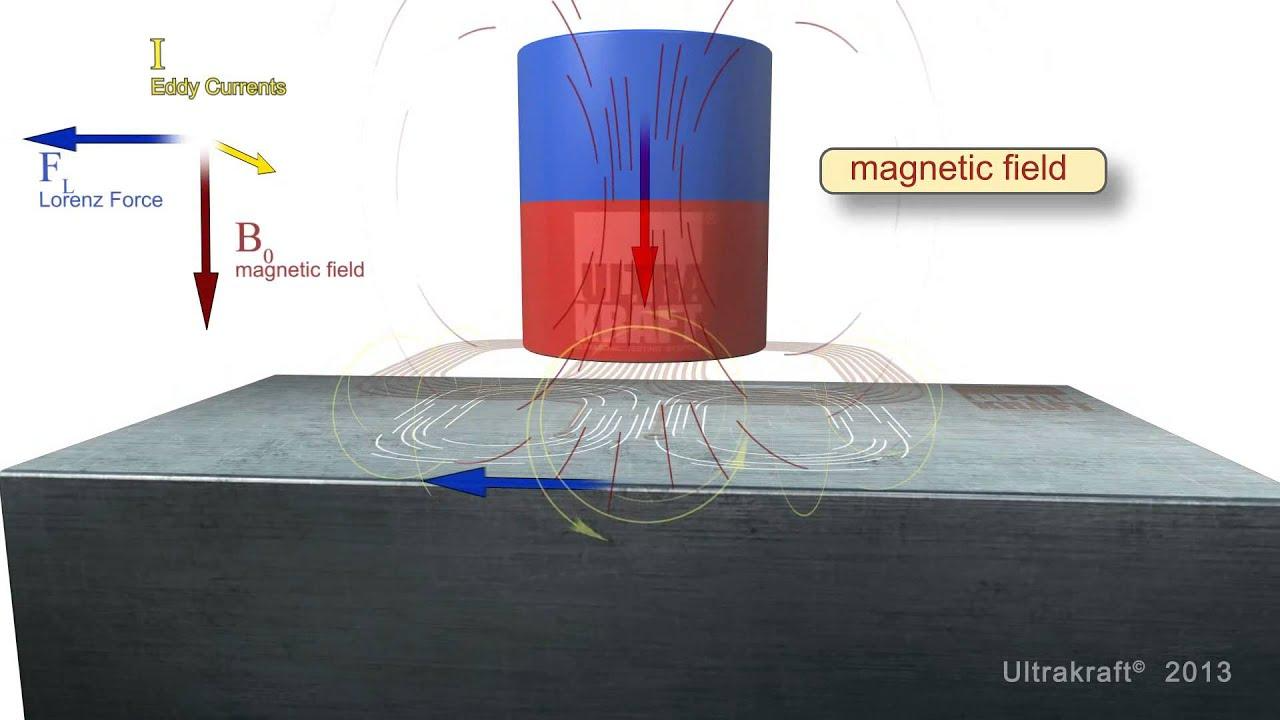

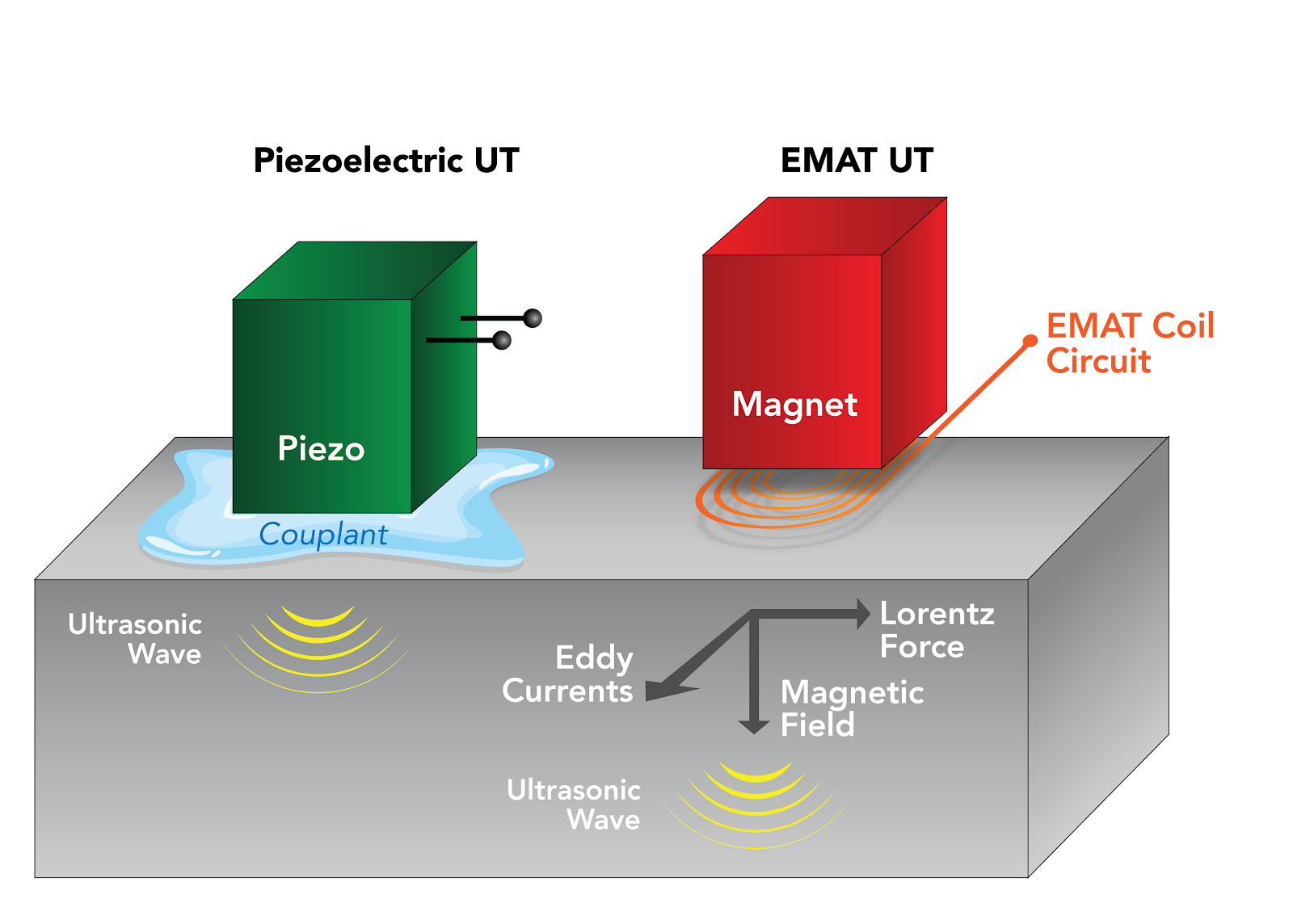

An EMAT consists of a magnet and a coil. The magnet provides a static magnetic field, while the coil carries an alternating current that generates a dynamic magnetic field. The interaction of these fields with the surface of a conductive or ferromagnetic material induces ultrasonic waves. These waves then propagate through the material and are detected by a receiver coil. Because no physical contact or couplant is required, EMATs can operate in high-temperature, coated, or rough-surface conditions where traditional ultrasonic methods face limitations.
Benefits of EMAT in Inspection
- Couplant-Free Operation – EMATs do not require gels, oils, or water, making them suitable for in-service inspections and high-temperature applications.
- Surface Tolerance – Effective on painted, rough, or oxidized surfaces where conventional ultrasonic testing struggles.
- Rapid Deployment – Faster scanning speeds with minimal surface preparation.
- High-Temperature Capability – Can be used on hot surfaces, often up to 600°C depending on the design.
- Versatility in Wave Modes – Ability to generate different ultrasonic wave types (shear horizontal, guided waves, Rayleigh waves) for comprehensive defect detection.
Limitations of EMAT Technology
- Lower Sensitivity – Compared to piezoelectric UT probes, EMATs often have lower signal-to-noise ratios.
- Material Restrictions – Requires conductive or ferromagnetic materials; non-conductive materials like plastics cannot be inspected.
- Higher Equipment Cost – Advanced electronics and probe design make EMATs more expensive than conventional UT.
- Limited Penetration – Less effective in detecting very deep flaws compared to bulk-wave ultrasonic testing.
- Specialized Expertise Needed – Operators require training to interpret EMAT signals correctly.
Case Study: EMAT for Pipeline Integrity Assessment

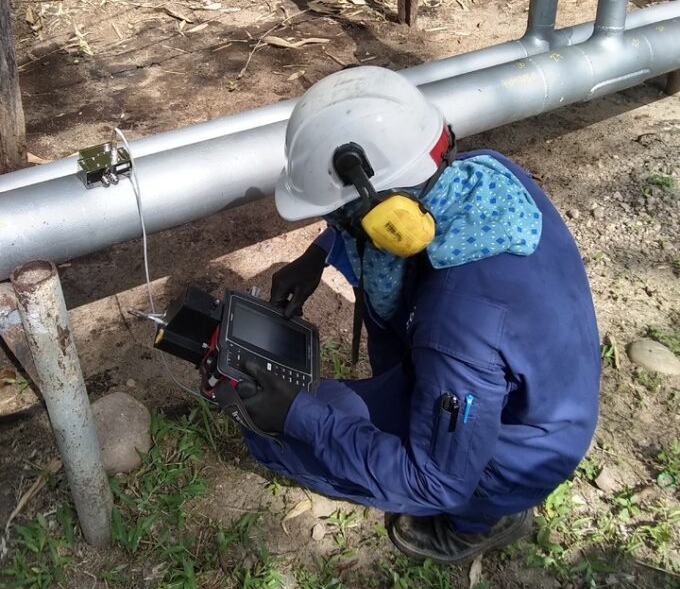

A major pipeline operator implemented EMAT inspection to monitor corrosion under insulation (CUI) and surface-breaking cracks in above-ground pipelines. Conventional ultrasonic testing was impractical due to coatings and operating temperature.
- Challenge: Inspect insulated steel pipelines without removing the insulation and without shutting down operations.
- Solution: EMAT guided wave technology was deployed, allowing inspectors to send ultrasonic waves along the length of the pipe.
- Outcome: EMAT successfully detected localized wall-thickness reductions and surface cracks without insulation removal. This reduced downtime, minimized inspection costs, and improved safety.
The case demonstrated EMAT’s ability to provide reliable, non-intrusive inspection in environments where conventional NDT methods are either costly or impossible.
Conclusion
Electromagnetic Acoustic Transducer (EMAT) inspection technology represents a valuable advancement in the NDT toolbox. While it cannot completely replace conventional ultrasonic testing, its unique strengths—particularly in couplant-free, high-temperature, and surface-insensitive applications—make it indispensable in specific scenarios. With ongoing developments to improve sensitivity and cost-effectiveness, EMAT is expected to play a growing role in pipeline monitoring, power generation, and aerospace industries.
Author: Mohamed Gamil Khedr
