Dust explosions are often catastrophic, causing irreparable damage and, tragically, loss of life. They occur when an ignition source—such as electrical or thermal equipment—is introduced into an area where combustible dust is present at high concentrations, usually within confined buildings or vessels. Extreme heat rapidly increases air pressure, triggering an explosion. Visibility in these environments can be extremely poor, comparable to dense fog. While these conditions may sound unusual, they are far from rare. Almost every industry has experienced dust explosion incidents at some point, with devastating examples continuing to occur in recent years.
Any industry that stores, handles, or processes materials is likely to generate dust. Food processing is a prime example. Sugar and flour production are particularly dust-intensive, as are the processing of grains and powdered products such as instant coffee, custard, and soup mixes.
Beyond food production, many large-scale industrial operations also create hazardous dust environments. Wood processing and chemical plants frequently handle powdered materials, whether as raw inputs or by-products of cutting, coating, mixing, or transporting materials. Recycling facilities process substantial volumes of plastic and paper dust, presenting similar risks.
The agricultural sector also relies on processes that generate combustible dust daily. Fertiliser production, industrial composting, and large storage facilities such as silos and grain elevators all carry significant dust explosion risks.
Coal mining presents an additional hazard. Crushing and transporting coal releases clouds of fine coal dust into the air. Compounding this, methane gas—naturally trapped within coal seams—is highly flammable and further increases the likelihood of explosions if disturbed.
How can Cygnus 1 Ex help?
Ultrasonic testing equipment is often required in these hazardous environments to perform essential maintenance and integrity inspections. While routine maintenance plays a vital role in preventing leaks and equipment failure—thereby reducing the risk of dust clouds—the inspection tools themselves must be safe to operate under explosive conditions.

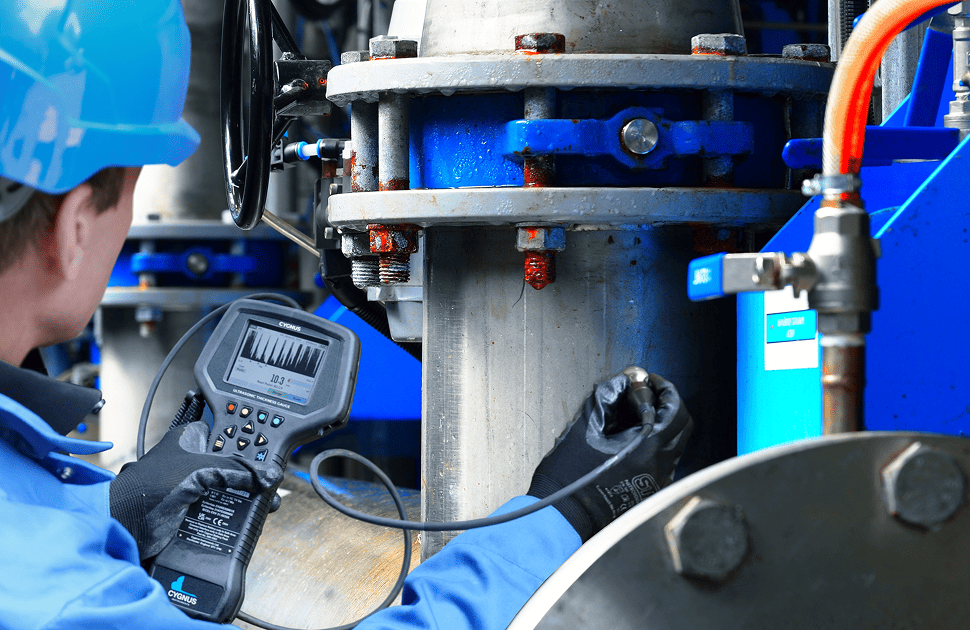

The Cygnus 1 Ex ultrasonic thickness gauge is certified for use in areas where fire or explosion risks exist due to ignitable or flammable substances present in the air, including dust. It achieves this through an intrinsically safe design.
Intrinsic safety is a protection method that limits the energy available within electronic equipment. By ensuring that no spark, arc, or excessive surface temperature can occur—even during fault conditions—intrinsically safe devices eliminate the possibility of igniting a hazardous atmosphere. This protection applies during normal operation, under applied fault conditions, and at low power and stored energy levels.
Key intrinsic safety features of the Cygnus 1 Ex include:
- Limited output energy to prevent ignition
- An anti-static enclosure to eliminate static discharge
- Multiple redundant safety components
- No high surface temperatures, even if the instrument is damaged or faulty
Intrinsic safety is an internationally recognised Ex protection concept used within IECEx, ATEX, and North American certification schemes. Equipment with appropriate protection levels can be used in specific hazardous “zones.” For dust environments, the Cygnus 1 Ex is certified for Zone 21 (where combustible dust is occasionally present) and Zone 22 (where dust is not normally present but may occur briefly).
More first-class Cygnus 1 Ex features
The Cygnus 1 Ex ultrasonic thickness gauge represents a major advancement in safe structural inspection. Customers describe it as versatile, robust, and intuitive. Crucially, it allows inspections to be carried out without plant shutdowns or Hot Work permits, saving time and reducing operational disruption.
The gauge offers three measuring modes and a selection of probes, enabling accurate measurements across a range of materials, including severely corroded metals and surfaces coated up to 20 mm thick—removing the need for costly coating removal.
Advanced users benefit from the Manual Measurement Mode, ideal for challenging conditions such as heavy corrosion. Similar to a flaw detector, users can adjust gates anywhere on the A-scan, modify height, start-point, and width, and measure from or between gates. Time-Controlled Gain (TCG) further enhances accuracy by strengthening weaker echoes.
Data handling is equally flexible. This UT instrument supports linear, template-based, and 2D or 3D grid logging, offering 16 grid patterns and annotation features. Radial Points allow up to 12 additional measurements around key inspection areas, enabling detailed analysis of corrosion hotspots.
To learn more, visit: cygnus-instruments.com/product/cygnus-1-ex/
