Corrosion Under Insulation (CUI) represents a critical threat to asset integrity across multiple industries, often progressing undetected beneath insulation systems until significant damage occurs. Traditional inspection methods have proven limited in identifying early-stage CUI, particularly in complex environments influenced by thermal gradients. This article explores the evolution of CUI management with a focus on emerging Non-Destructive Testing (NDT) technologies, such as Long-Range Ultrasonic Testing (LRUT), Pulsed Eddy Current (PEC), Infrared Thermography, and Digital Twin modeling. A real-world case study highlights how thermal gradients can accelerate CUI risks and how advanced NDT methods can significantly enhance detection, Risk-Based Inspection (RBI) strategies, and proactive maintenance planning. Future trends, including online monitoring, robotics, and predictive analytics, are discussed to outline a modern, data-driven approach for achieving long-term asset reliability and safety.

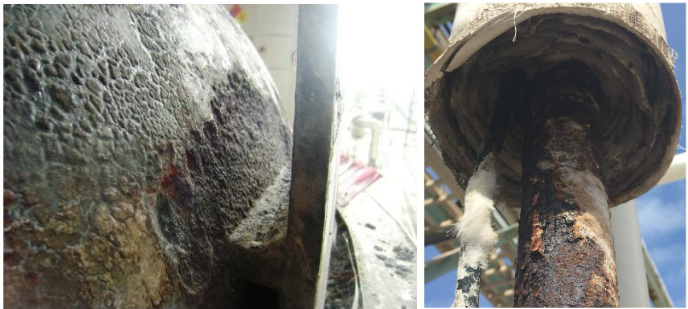

Examples of CUI after insulation was removed

Corrosion Under Insulation (CUI) is a persistent and destructive form of localized corrosion affecting insulated piping and equipment across a wide range of industries, including oil refining, petrochemicals, power generation, and chemical processing. Despite decades of operational experience and technological advancement, CUI continues to pose a major challenge due to its hidden nature and the difficulty of early-stage detection.

The consequences of undetected CUI are significant: unexpected equipment failures, hydrocarbon releases, production losses, costly repairs, and, most critically, serious safety incidents. Industry data consistently shows that CUI accounts for a disproportionate share of corrosion-related maintenance costs — in some studies, up to 40-60% of piping failures in certain sectors can be attributed to CUI [source: NACE SP0198].

The difficulty in managing CUI stems largely from the insulation system itself, which, while essential for thermal efficiency, creates a barrier that traps moisture and prevents easy visual access to the metallic surface. Moisture can

infiltrate insulation due to weathering, mechanical damage, condensation, or construction flaws. Once water is present beneath insulation, the metal surface becomes susceptible to various corrosion forms, including general corrosion, pitting, and stress corrosion cracking, depending on environmental and material factors.

Historically, the primary strategy for CUI detection has been periodic insulation removal combined with visual inspection and spot ultrasonic thickness (UT) measurements. However, this approach is time-consuming, labor- intensive, costly, and often reactive — frequently discovering problems only after significant material loss has occurred. In response to these challenges, the industry has increasingly turned toward Non-Destructive Testing (NDT) technologies as a means to improve CUI detection rates, optimize maintenance resources, and enhance predictive asset integrity programs. Advanced NDT methods offer the potential to detect CUI in situ, without the need for extensive insulation removal, and to identify areas of concern before failures occur.

This article explores the evolution of CUI management practices, with a strong focus on the role of emerging NDT technologies. It discusses:

• The nature and causes of CUI across different sectors,
• The limitations of traditional inspection techniques,
• The emergence of advanced NDT methods such as Long-Range Ultrasonic Testing (LRUT), Pulsed Eddy Current (PEC), Guided Wave Testing (GWT), Infrared Thermography, and Acoustic Emission Monitoring,
• A real-world case study illustrating how thermal gradients can exacerbate CUI risks and how NDT could have mitigated the consequences,
• How modern inspection technologies are transforming Risk-Based Inspection (RBI) strategies,
• Future trends in online monitoring, robotics, and data analytics for proactive CUI control.

CUI damage found on a sweating service small bore pipe, 5 years in service

2. Understanding CUI in Industrial Systems

2.1. What is Corrosion Under Insulation (CUI)?

Corrosion Under Insulation (CUI) refers to any type of corrosion occurring due to the ingress and entrapment of moisture beneath insulation materials installed on piping, vessels, and other process equipment. While the insulation’s primary purpose is to maintain process temperature, conserve energy, and protect personnel, it can inadvertently create conditions conducive to corrosion when moisture penetrates and is retained inside the insulation system.

The nature of CUI is complex because it encompasses multiple corrosion mechanisms depending on specific environmental and material conditions. These mechanisms include:

• General carbon steel corrosion,
• Localized pitting corrosion,
• Chloride-induced stress corrosion cracking (especially in austenitic stainless steels),
• Galvanic corrosion between dissimilar metals under insulation,
• Microbial influenced corrosion (MIC) under moist environments.

CUI is not a material-specific problem; it affects carbon steel, stainless steel, and even some non-ferrous alloys depending on temperature, moisture, and chemical exposure.

2.2. Factors Influencing CUI Development

Several key factors contribute to the initiation and propagation of CUI:

Temperature Range:

• CUI tends to occur most aggressively in a temperature range of approximately -12°C to 175°C. Within this range:
• Water can condense from the atmosphere or process,
• Thermal cycling promotes wet-dry conditions that accelerate corrosion rates. Thermal Gradients:
• When temperature transitions occur along a pipeline (e.g., from cryogenic to ambient), condensation cycles increase dramatically, creating localized wet zones.

Insulation System Failures:

• Damaged, aged, or improperly installed insulation allows moisture ingress, and conventional insulation materials (e.g., mineral wool) can retain water like a sponge.

Protective Coating Failure:

• Lack of effective corrosion-resistant coatings under the insulation accelerates attack once moisture breaches the system.

External Environment:

• Offshore environments, coastal locations, and humid climates amplify CUI risks due to higher airborne moisture and salts.

Material Selection:

• Carbon steels are highly vulnerable to general corrosion, while stainless steels face chloride stress corrosion cracking (Cl SCC) risks when insulation is contaminated with chlorides.

CUI leak discovered on hot service vessel operating at 180°F, 25 years in service

2.3. Why CUI Is Difficult to Detect?

The detection of CUI poses significant challenges:

Hidden Damage:

• The corrosion occurs beneath multiple layers (e.g., cladding, vapor barriers, insulation materials), rendering it invisible to external visual inspections.

Localized Attack:

• CUI often develops in highly localized spots rather than uniformly across surfaces, making random spot checks unreliable.

Inconsistent Insulation Conditions:

• Moisture infiltration may occur only at specific points (e.g., insulation joints, support locations, pipe elbows), complicating targeted inspections.

Thermal Profiles Variations:

• Even on the same system, some regions might stay dry while others experience continuous condensation, depending on flow rates, environmental exposure, and process conditions.

Thus, conventional inspection strategies, which rely heavily on insulation removal and random spot checks, have shown limited success in detecting early-stage CUI or predicting its occurrence accurately.

2.4. Scope of CUI Across Industries

CUI is not restricted to any particular sector. It affects:

• Oil & Gas Production: Offshore platforms and refineries often suffer severe CUI due to exposure to saline environments and humidity.
• Petrochemical Plants: Process units handling hydrocarbons, especially those with cooling or cryogenic systems, are highly vulnerable.
• Power Generation Facilities: Steam piping systems insulated for thermal conservation are prone to thermal cycling-driven CUI.
• Chemical Processing: Aggressive chemicals combined with moist environments result in complex CUI mechanisms, including under-deposit attack and SCC.

The broad scope of CUI reinforces the urgent need for effective, reliable, and proactive inspection methodologies - a need that has driven the advancement of NDT technologies specifically for CUI applications.

3. Traditional Inspection Methods for CUI and Their Limitations

3.1. Overview of Conventional Inspection Practices

Historically, the inspection of Corrosion Under Insulation (CUI) has been carried out using relatively straightforward and labor-intensive methods. These practices typically involve:

External Visual Inspection:

• Inspectors look for external signs that may suggest internal corrosion, such as staining, bulging, rust runoff, or damage to insulation and cladding systems.
• Selective Insulation Removal (“Box-In” Inspections):
• Insulation is manually removed at random or suspected areas to visually examine the condition of the underlying pipe surface.

Spot Ultrasonic Thickness (UT) Measurements:

• Once insulation is removed or access points (“inspection ports”) are created, ultrasonic thickness gauges are used to measure pipe wall loss.

Moisture Detection Probes:

• In some cases, simple moisture probes are inserted into the insulation to check for water presence, but without providing information on actual corrosion status.

These techniques form the backbone of traditional CUI inspection programs, especially within time-based or risk- based maintenance systems.

3.2. Key Limitations of Traditional Methods

While conventional methods have historically been widely used, their limitations have become increasingly evident:

Limited Coverage

• Spot checks typically assess only a very small fraction of the total insulated surface area.
• Given the localized and random nature of CUI, corrosion hotspots can easily be missed between inspection points.

Destructive and Costly

• Physical removal and reinstatement of insulation are time-consuming and expensive.
• Labor costs for scaffolding, insulation removal, inspection, and reapplication are often higher than the inspection costs themselves.

Reactive Rather Than Proactive

• Traditional inspections often detect CUI only after significant wall thinning or visible damage has already occurred.
• Early-stage CUI, which may still be repairable at lower cost, frequently goes unnoticed.

Safety Risks

• Working at heights, exposure to hazardous insulation materials (e.g., asbestos or glass fibers), and manual handling create significant safety concerns for inspection crews.

Inconsistency and Subjectivity

• External visual signs are not always reliable indicators of internal corrosion severity.
• Insulation systems may look intact externally while hiding advanced corrosion underneath.

Poor Adaptability to Dynamic Conditions

• Conventional inspections are static snapshots; they do not capture evolving conditions such as changing thermal profiles, condensation cycles, or moisture ingress dynamics.

These limitations severely restrict the effectiveness of traditional CUI inspection programs, especially in complex thermal environments like cryogenic piping systems transitioning to ambient temperatures, where thermal gradients create hidden wet zones over time.

3.3. Observations from Industrial Cases

Across numerous reported CUI incidents, including pipelines operating under thermal gradient conditions, it has been observed that:

• Critical localized thinning occurs precisely at areas not easily accessible or traditionally inspected.
• Leaks and failures often occur between scheduled inspections.
• Reliance solely on traditional inspection methodologies leads to reactive maintenance rather than proactive integrity management.

This industrial reality has driven the increasing demand for advanced NDT techniques — methods capable of non- invasively assessing large areas, detecting early-stage corrosion beneath insulation, and providing more predictive insight into asset condition without destructive intervention.

4. Case Study Illustration: Thermal Gradient Effects on CUI Progression

4.1. Case Background

In industrial environments where piping systems transport cryogenic or cold-temperature hydrocarbons, an often- overlooked phenomenon can significantly exacerbate Corrosion Under Insulation (CUI) risks: thermal gradient effects.

One notable example involved a storage outlet pipeline transporting propylene gas. The line originated at the top of a storage tank where the gas was maintained at cryogenic temperatures, approximately -48°C. As the pipeline descended vertically and traveled horizontally toward downstream processing units, the temperature of the propylene progressively increased due to ambient heat absorption and flow-induced warming.

This gradual rise in temperature, known as a thermal gradient, moved sections of the pipeline from a cryogenic safe zone (where corrosion risk is negligible) into a CUI-susceptible range between -12°C to 175°C. Within this range, condensation, moisture retention, and corrosion risks dramatically escalated.

4.2. Thermal Gradient-Induced Risk Zones

The pipeline could be categorized into three thermal regions:

• Cryogenic Zone (~ -48°C to -20°C):
• Moisture condensation unlikely; minimal corrosion risk.
• Transition Zone (~ -20°C to +30°C):
• Frequent condensation as temperature crosses the dew point; highly vulnerable to moisture accumulation inside insulation.
• Ambient-to-Process Zone (~ +30°C and above):
• Steady warm temperatures that, combined with trapped moisture, create ideal conditions for accelerated corrosion.

The highest incidence of CUI damage and wall thinning was found within the transition zone, where repeated thermal cycling caused persistent condensation inside the insulation system, overwhelming any vapor barriers or coatings.

4.3. Key Observations from Inspection and Failure Analysis

A comprehensive inspection program was launched after several leaks were detected. The following findings were made:

• Severe localized wall loss was discovered precisely at sections experiencing transition from cryogenic to ambient conditions.
• Insulation systems exhibited signs of saturation with water, particularly in transition zones.
• No protective coatings were applied beneath the insulation, leaving bare carbon steel surfaces directly exposed to moisture.
• Conventional inspections previously performed failed to identify these localized hotspots due to random spot- checking that missed the critical transition regions.

Ultrasonic thickness measurements confirmed that in some areas, wall thickness had dropped by more than 70% of the original design thickness, necessitating urgent repairs and partial pipeline replacement.

4.4. Lessons Learned

This case offered several valuable lessons regarding CUI in thermally dynamic systems:

• Thermal gradient effects create unique and localized CUI risk zones that are not adequately addressed by standard risk models focused solely on operating temperature ranges.
• Visual external inspections are ineffective at detecting internal condensation and corrosion driven by subtle thermal transitions.
• Insulation design and maintenance must account for thermal cycling, ensuring that moisture barriers remain effective even under temperature fluctuations.
• Inspection strategies must adapt to thermal profiles, focusing on areas where temperature transitions occur rather than treating the pipeline uniformly.

4.5. Importance of Integrating NDT Solutions

Based on the post-failure analysis, it became clear that a combination of modern techniques such as:

• Long-Range Ultrasonic Testing (LRUT) to scan for generalized wall thinning,
• Pulsed Eddy Current (PEC) to detect isolated corrosion patches,
• Infrared Thermography to locate wet insulation zones,

would have significantly enhanced the ability to predict, locate, and quantify corrosion damage without the need for destructive insulation removal.

By proactively implementing these NDT techniques, asset owners can shift from reactive maintenance (responding to leaks) to proactive integrity management, dramatically reducing downtime, repair costs, and safety risks.

Principle of Guided Wave UT Compared with Conventional Manual UT

5. Emerging NDT Methods for Detecting CUI

5.1. The Need for Advanced NDT in CUI Management

As highlighted in previous sections, traditional inspection techniques are often insufficient for early, reliable detection of Corrosion Under Insulation (CUI). The cost, time, and risks associated with insulation removal, combined with the localized and hidden nature of CUI, have driven the development and adoption of advanced Non-Destructive Testing (NDT) technologies.

Emerging NDT methods allow:

• Scanning larger surface areas without removing insulation,
• Detecting localized wall loss and moisture ingress early,
• Improving Risk-Based Inspection (RBI) strategies with data-driven decisions,
• Reducing downtime and inspection costs.

Several technologies have gained prominence, each offering distinct advantages and application scopes for managing CUI.

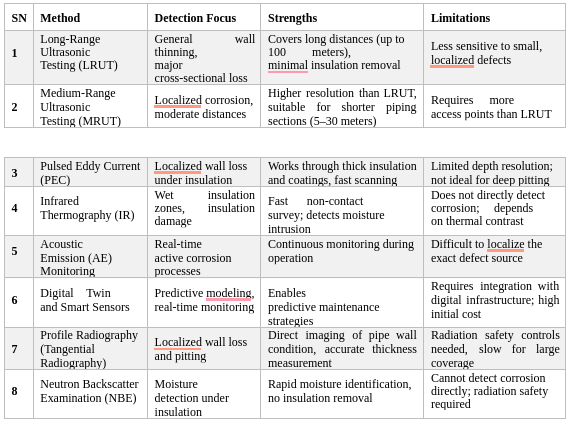

5.2. Overview of Key Advanced NDT Methods

Each method targets specific aspects of CUI risk and is often best used in complementary inspection programs rather than as a standalone solution.

5.3. Detailed Discussion of Each Technique

5.3.1. Long-Range Ultrasonic Testing (LRUT)

Principle:

LRUT uses low-frequency guided ultrasonic waves transmitted along the length of the pipe. Changes in wave reflection indicate areas of cross-sectional loss or anomalies.

Advantages:

• Inspects tens of meters from a single transducer location.
• No need to strip insulation except at access points.
• Rapid coverage of large assets (e.g., pipelines, risers). Limitations:
• Not sensitive to small pits or early-stage corrosion.
• Difficulties with highly irregular geometries (e.g., elbows, tees). Applications in CUI:
• LRUT is ideal for detecting generalized wall thinning beneath insulation, especially over long, straight piping sections where traditional spot checks would be impractical.

Long Range Ultrasonic Testing

5.3.2. Medium-Range Ultrasonic Testing (MRUT)

Principle:

MRUT is a specialized configuration of Guided Wave Testing (GWT) that operates at higher frequencies compared to LRUT. While LRUT typically operates around 20–100 kHz to achieve maximum propagation distance, MRUT uses mid-frequency guided waves in the range of 100–500 kHz to achieve a balance between inspection distance (shorter than LRUT but still meaningful: ~5–30 meters), improved sensitivity to smaller and localized defects, and higher resolution imaging compared to low-frequency LRUT.

Advantages:

• MRUT can detect smaller, localized corrosion features and wall thinning that may not be detected reliably by LRUT due to its lower operating frequency.
• Effective for pipelines and piping systems with inspection needs up to about 30 meters from a single access point.
• Similar to LRUT, MRUT requires only localized insulation removal at the transducer collar location, making it cost-effective and less invasive.
• The increased frequency bandwidth of MRUT allows better discrimination between corrosion types (e.g., generalized wall loss vs. localized pitting).
• Higher frequency guided waves can better navigate short piping sections with some fittings, elbows, or supports

— although complex geometries still require careful setup and signal interpretation.

Limitations:

• Compared to LRUT, MRUT covers shorter distances (~5–30 meters typically) due to higher energy loss (attenuation) at mid-frequencies.
• For large assets, more inspection collars (sensor installation points) are needed compared to LRUT since MRUT cannot scan across very long uninterrupted distances.
• Water-logged insulation or poor coupling at transducer locations can degrade the signal quality more severely at higher frequencies.
• It requires trained and certified operators with experience in guided wave analysis, especially when analyzing small defect signals at mid-frequency.

Applications in CUI:

• Insulated piping sections where localized CUI detection is critical, especially when previous screening (e.g., with IR or LRUT) suggests suspect areas.
• Short or complex piping layouts (e.g., between vessels and pumps, vertical risers, short pipe runs with supports).
• Pipelines in congested plant environments where long-range inspections are not feasible due to multiple structural attachments.

Medium Range Ultrasonic Testing

5.3.3. Pulsed Eddy Current (PEC)

Principle:

PEC measures changes in induced electromagnetic fields caused by variations in material thickness, capable of penetrating insulation and corrosion product layers.

Advantages:

• Inspects through insulation up to 100mm thick (depending on system).
• Good sensitivity to local wall loss.
• Fast scanning with portable equipment. Limitations:
• Depth resolution decreases with thicker insulation.
• Not effective for very small or deeply buried pits.

Applications in CUI:

• PEC is highly effective for targeted inspections of suspected CUI zones, especially around supports, nozzles, and insulated bends where moisture accumulates.

A Pulsed Eddy Current Array System

5.3.4. Infrared Thermography

Principle:

Detects surface temperature anomalies which may indicate insulation defects, moisture ingress, or underlying corrosion.

Advantages:

• Non-contact, rapid large-area survey.
• Useful for identifying “wet insulation” zones that may correlate with CUI. Limitations:
• Cannot detect corrosion directly — only moisture or insulation anomalies.
• Requires differential temperature between pipe and ambient conditions.

Applications in CUI:

• Best used as a preliminary screening tool to prioritize areas for more detailed inspection.

Thermographs Showing Areas with Wet Insulation (in red)

5.3.5. Acoustic Emission (AE) Monitoring

Principle:

Monitors transient elastic waves generated by active corrosion processes or crack formation.

Advantages:

• Real-time monitoring during plant operation.
• Detects active corrosion mechanisms, not just existing damage. Limitations:
• Localization of corrosion sources is complex.
• Sensitive to background noise.

Applications in CUI:

• Suitable for continuous monitoring of critical assets during operation to detect onset of corrosion activity.

How Acoustic Emission (AE) Testing Works

5.3.6. Digital Twin Modeling and Smart Sensors

Principle:

Combines 3D digital representations of assets with real-time sensor inputs (humidity, temperature, wall thickness) to predict corrosion risk.

Advantages:

• Predictive rather than reactive.
• Provides real-time asset condition monitoring.
• Supports optimized maintenance planning. Limitations:
• High initial setup cost and data management complexity.
• Requires integration with plant digital infrastructure.

Applications in CUI:

• Emerging as a future trend for high-value, safety-critical assets requiring continuous integrity assurance.

Digital Twins & IoT Sensors

5.3.7. Profile Radiography (Tangential Radiography)

Principle:

Profile Radiography, often referred to as Tangential Radiographic Testing (RT), involves positioning the X-ray or gamma-ray beam tangentially to the outer surface of a pipe or vessel wall.

This setup captures an image of the pipe wall profile, allowing direct measurement of wall thickness, wall thinning, pitting, or CUI-related damage — without needing full insulation removal.

The source and film are arranged to view a thin slice of the pipe wall at an angle, making the thickness changes or corrosion losses visible on the radiographic image.

Advantages:

• Can detect localized thinning, pitting, and undercut corrosion with good dimensional accuracy.
• Only small access windows are needed in the insulation for source/film placement.
• Provides a visual confirmation of corrosion features (not just signal interpretation like in ultrasonic methods).
• Particularly useful when inspecting nozzles, elbows, small diameter piping, or difficult-to-reach areas. Limitations:
• Requires strict safety controls (controlled access zones) during exposure, especially when using gamma sources.
• Enough circumferential access is required to place both source and film or digital detector.
• Slow and labor-intensive for long pipelines or extensive piping networks.
• Beam angle, exposure settings, and insulation thickness can affect image clarity and thickness measurement accuracy.

Applications in CUI:

• Verification of suspected localized CUI found by screening methods (e.g., after LRUT, MRUT, PEC, or IR thermography).
• Small diameter piping, nozzles and fittings, elbow regions, and welds where external corrosion is suspected.

Examples of Profile Radiograph Showing CUI Damage on an Insulated Pipe

5.3.8. Neutron Backscatter Examination (NBE)

Principle:

Neutron Backscatter Examination (NBE) is a non-destructive inspection technique used primarily to detect moisture presence within or beneath insulation materials without removing the insulation.

It operates based on the interaction between neutrons and hydrogen atoms in water molecules.

• A neutron source emits fast neutrons into the material.
• Hydrogen-rich materials (like water) slow down these neutrons.
• A neutron detector measures the number of slowed (thermalized) neutrons that return (scatter back).
• High thermal neutron counts indicate the presence of moisture inside the insulation.

Thus, NBE does not detect corrosion directly, but it identifies moisture ingress, which is a critical precursor for CUI development.

Advantages:

• Detects hidden moisture under insulation without the need to remove cladding or insulation layers.
• NBE equipment can quickly survey large areas to identify zones of trapped moisture, helping prioritize further inspections.
• Even small amounts of trapped water can be detected, alerting operators before CUI progresses significantly.
• Suitable for use on carbon steel, stainless steel, and other metallic or non-metallic insulated systems. Limitations:
• Neutron backscatter only detects moisture presence; it cannot measure corrosion or wall thickness loss.
• Although neutron sources are generally low activity, radiation safety precautions are necessary, and operator licensing may be required depending on regulations.
• Inspectors must physically scan the insulation surface with the device, which might be challenging in congested areas.
• Some insulation materials themselves may contain bound moisture or hydrogenous materials, complicating interpretation.

Applications in CUI:

• Locating areas where moisture has penetrated insulation systems, particularly in risk-prone zones such as: Low points, Support attachments, Elbows and nozzles.
• Areas identified as moisture-rich by NBE can be further evaluated with PEC, Profile Radiography, or localized insulation removal.
• Ideal for continuous operation facilities, as it does not require shutdown or insulation removal.

The Neutron Backscatter System

5.4. Combining NDT Techniques for Best Results

No single NDT technique perfectly covers all aspects of CUI detection. Therefore, combination strategies are increasingly used:

• Thermography to identify wet insulation zones,
• Followed by PEC or LRUT scans for quantitative assessment,
• Digital Twins to forecast corrosion progression based on real-time inputs.

This integrated approach enhances reliability, improves detection accuracy, and supports better RBI decisions.

6. Integrating Advanced NDT into Risk-Based Inspection (RBI) Programs

6.1. Traditional RBI Approach to CUI

Risk-Based Inspection (RBI) methodologies, governed by standards such as API 580 and API 581, have been widely implemented to optimize maintenance strategies across the industry. Traditionally, RBI assessments for Corrosion Under Insulation (CUI) rely on:

• Material type (e.g., carbon steel, stainless steel),
• Operating temperature,
• Insulation system type,
• External environment (humidity, coastal proximity, rainfall frequency),
• Process fluid aggressiveness,
• Time in service.

While such frameworks help prioritize assets for inspection, they have historically suffered from critical blind spots, especially when:

• Thermal gradients are present,
• Insulation degradation or hidden damage is not accounted for,
• Early-stage CUI is missed between inspection intervals.

Moreover, traditional RBI models often assume that CUI develops uniformly across insulated surfaces, an assumption that real-world experience has consistently disproved.

6.2. The Role of Advanced NDT in Modernizing RBI Strategies

Emerging NDT technologies provide critical new data streams that can significantly enhance the accuracy, adaptability, and effectiveness of RBI programs.

Key contributions of Advanced NDT to RBI include:

Quantitative Wall Loss Data:

• PEC, LRUT, and GWT provide wall thickness profiles without insulation removal, allowing more accurate degradation rate modeling.

Localized Risk Zone Identification:

• Infrared thermography can rapidly screen large assets to highlight localized moisture ingress areas, helping prioritize follow-up inspections.

Condition-Based Inspection Scheduling:

• Instead of fixed-interval inspections, RBI can be dynamically adjusted based on real-time or recent NDT findings. Improved Probability of Failure (PoF) Calculations:
• Accurate thickness loss measurements and corrosion activity detection (via AE) allow better estimation of remaining life and failure probabilities.

Digital Twins and Predictive Analytics:

• Combining NDT sensor inputs with predictive corrosion models enables RBI frameworks to simulate future asset conditions and refine inspection timing.

Thus, the integration of advanced NDT transforms RBI from a semi-static risk model into a living, dynamic system that evolves with real asset conditions.

6.3. Building a Modern CUI-Focused RBI Framework

To fully leverage NDT advancements, a modern RBI program for CUI management should incorporate the following elements:

Baseline Advanced NDT Survey:

• Initial scanning using LRUT, PEC, and/or IR Thermography to map current asset condition. Dynamic Risk Mapping:
• Use findings to create thermal gradient-based risk zones, assigning different inspection frequencies based on localized risk.

Continuous Monitoring Integration:

• Where justified, install humidity, temperature, or corrosion sensors on critical assets to provide live condition data.

Probability and Consequence Updating:

• After each inspection cycle, update PoF and CoF models using collected NDT data. Inspection Interval Optimization:
• Assets showing minimal wall loss and dry insulation may be inspected less frequently, while high-risk zones can be monitored more closely.

Data Analytics and Machine Learning (Emerging):

• Advanced analytics tools can recognize patterns in NDT datasets that predict where future CUI may develop.

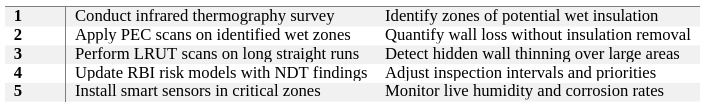

6.4. Example Workflow: Integrating NDT into RBI for a Cryogenic to Ambient Pipeline STEP ACTION TOOL USED

6.5. Benefits Realized

Organizations that have modernized their RBI systems with NDT integration report measurable benefits:

• 30–50% reduction in unplanned CUI-related failures【source: AMPP Industry Surveys】,
• 20–40% cost savings on inspection and maintenance,
• Extension of asset service life by proactive intervention,
• Significant improvement in safety and environmental compliance.

These results reinforce the value of combining advanced inspection technologies with intelligent risk management frameworks.

7. Future Trends: Online Monitoring, Robotics, Predictive Analytics

7.1. The Shift Toward Proactive CUI Management

The evolution of CUI detection is moving rapidly beyond periodic inspections toward a proactive, continuous monitoring model. Future strategies for combating CUI will combine real-time data acquisition, smart analytics, and autonomous inspection technologies — creating a paradigm shift from traditional time-based maintenance to predictive integrity management. Several major trends are shaping the future landscape of CUI detection:

7.2. Online Monitoring Systems

Online corrosion and moisture monitoring systems are becoming increasingly feasible and affordable for insulated systems. Types of Online Monitoring:

Moisture Sensors:

• Installed between insulation layers, these sensors detect water ingress and condensation events in real time. Humidity and Temperature Sensors:
• Continuous measurement of environmental conditions inside the insulation jacket helps predict when and where condensation risks peak.

Corrosion Monitoring Probes:

• Specially designed thin probes or coupons embedded beneath insulation can detect corrosion initiation and progression early.

Benefits:

• Immediate detection of changing conditions without insulation removal,
• Targeted maintenance interventions before damage becomes critical,
• Continuous integrity assurance for critical assets. Challenges:
• Installation logistics on existing assets,
• Long-term sensor reliability under harsh field conditions,
• Integration with plant data acquisition and asset management systems.

7.3. Use of Robotics and Drones

Robotics are increasingly being developed for CUI inspection applications:

Crawling Robots:

• Robotic crawlers equipped with Ultrasonic, PEC, or Thermographic sensors can navigate across insulated pipelines, scanning continuously without human exposure to hazardous areas.

Aerial Drones:

• Drones equipped with infrared cameras can quickly survey large overhead insulated piping racks and vessel surfaces, identifying wet insulation zones from above.

Robotic CUI Removal (Emerging):

• Prototypes exist for robots capable of locally removing insulation patches, performing inspection, and resealing without human intervention.

Benefits:

• Reduced human risk exposure (especially for high elevation or offshore assets),
• Faster, broader coverage at lower cost,
• Integration with live data streams for immediate analytics. Challenges:
• Navigating complex plant geometries,
• Data processing and real-time interpretation,
• Regulatory and safety certifications.

7.4. Artificial Intelligence (AI) and Predictive Analytics

The explosion of industrial data (“Industry 4.0”) combined with AI capabilities is enabling the transition to predictive corrosion management:

Machine Learning Models:

• Algorithms can analyze historical NDT datasets, environmental data, and process conditions to identify patterns correlating with CUI onset.

Predictive Failure Modeling:

• Digital Twins powered by live sensor feeds and AI can predict not just where CUI might occur, but when intervention will be required.

Smart RBI Updating:

• Future RBI systems will automatically update asset risks based on real-time field data interpreted by machine learning engines, making human decision-making faster and more accurate.

Benefits:

• Proactive intervention planning,
• Significant reduction in unscheduled outages,
• Optimization of inspection resources and costs. Challenges:
• Data quality and integration across legacy systems,
• Cybersecurity risks related to sensor networks and predictive models,
• Skilled workforce required to manage AI-driven integrity systems.

7.4. Toward a Digital-First CUI Management Strategy

The future of CUI management is not a replacement of NDT inspection but rather an integration of:

• Advanced NDT Techniques,
• Continuous Online Monitoring,
• Robotic-Assisted Inspections,
• Predictive Digital Twin Simulations.

This hybrid approach will provide unprecedented asset visibility, allowing operators to move from periodic maintenance toward condition-based and predictive maintenance — ensuring higher reliability, safety, and cost efficiency. Facilities that invest early in these technologies are likely to gain a significant competitive advantage by maximizing asset life, minimizing downtime, and maintaining safer operations.

8. Lessons Learned and Best Practices

8.1. Key Lessons from Industry Cases and CUI Incidents

The persistent challenges faced across numerous industrial cases, including pipelines subjected to thermal gradients, reveal clear lessons in effective CUI management:

CUI Is Often Localized and Unpredictable:

• Even with general insulation integrity, thermal gradients and environmental factors can create unexpected corrosion hotspots.

Conventional Inspection Methods Are No Longer Sufficient:

• Random insulation removal and spot ultrasonic testing are too reactive, costly, and unreliable for ensuring proactive asset integrity.

Thermal Gradient Effects Require Special Attention:

• Systems operating under changing temperatures (e.g., cryogenic to ambient) must be recognized as high-risk CUI candidates, even when initial design documents suggest low risk.

Early-Stage Detection Is Critical:

• Detecting wall loss or insulation wetting in the early stages dramatically reduces repair costs and prevents catastrophic leaks or failures.

Integration of Advanced NDT into Maintenance Planning Is Essential:

• Facilities that adopt LRUT, PEC, Infrared Thermography, and Digital Twin technology significantly enhance their risk management capabilities.

8.2. Recommended Best Practices for CUI Management

Based on industry experience, standards, and the evolution of NDT techniques, the following best practices are strongly recommended:

1. Risk-Based Prioritization
2. Develop a detailed CUI risk matrix based on thermal profiles, insulation quality, material type, operating conditions, and environmental exposure.
3. Prioritize areas with thermal gradients, supports, elbows, nozzles, and low points.
4. Implement Advanced NDT Techniques
5. Use a combination of LRUT, PEC, GWT, and Infrared Thermography for initial scanning and periodic reassessment.
6. Select techniques based on asset geometry, insulation type, and inspection access constraints.
7. Data-Driven RBI Updates
8. Regularly update Risk-Based Inspection models with the latest NDT results rather than relying solely on theoretical degradation rates.
9. Incorporate real-time data where available to fine-tune Probability of Failure (PoF) assessments.
10. Moisture Management at Design Stage
11. Specify hydrophobic insulation materials and multi-layered vapor barriers for new installations.
12. Regularly inspect and maintain jacketing and sealing systems to prevent moisture ingress.
13. Early Digital Integration
14. Gradually build Digital Twin models of critical assets.
15. Link NDT data, maintenance history, and sensor inputs to develop predictive corrosion risk models.
16. Continuous Training and Skill Development
17. Train inspection teams on advanced NDT techniques and data interpretation.
18. Foster cross-functional collaboration between corrosion engineers, NDT specialists, and RBI coordinators.

8.3. Cultural Shift Toward Predictive Integrity

A fundamental cultural change is also necessary:

• Moving away from “find and fix” approaches,
• Adopting a “predict and prevent” mindset,
• Treating asset integrity not just as a compliance requirement but as a strategic enabler for operational excellence.

Organizations that invest in modern CUI management strategies are better positioned to extend asset lifecycles, reduce operational risks, and achieve long-term cost savings.

9. Conclusion

Corrosion Under Insulation (CUI) continues to be one of the most significant and costly challenges in the oil, gas, petrochemical, and power industries. Hidden by its very nature, CUI has the potential to compromise asset integrity, threaten operational safety, and result in substantial financial losses if not detected and managed effectively.

Traditional inspection methods, while historically foundational, are increasingly inadequate for the early detection of CUI, especially in complex systems experiencing thermal gradients, cyclic temperature fluctuations, and moisture entrapment.

The emergence of advanced Non-Destructive Testing (NDT) technologies — such as Long-Range Ultrasonic Testing (LRUT), Pulsed Eddy Current (PEC), Infrared Thermography, Acoustic Emission Monitoring, and Digital Twin modeling — is transforming the way industries approach CUI management. These technologies enable more accurate, efficient, and proactive detection of hidden corrosion risks, empowering asset owners to shift from reactive maintenance strategies toward predictive integrity models.

Integrating these advanced techniques into Risk-Based Inspection (RBI) frameworks, supported by continuous monitoring and data analytics, offers a path forward to reduce CUI-related failures, optimize inspection intervals, enhance safety, and extend the life of critical infrastructure.

As the industry moves into an era defined by digitalization, robotics, and predictive analytics, CUI management must evolve accordingly.

Organizations that embrace these technological advancements and embed them into their asset integrity strategies will be far better equipped to navigate the complexities of modern industrial operations — ensuring safer, more reliable, and more sustainable performance for years to come.

The future of CUI management lies not only in better tools but in a smarter, more integrated approach that combines technology, data, and engineering insight.

References

1. API Recommended Practice 583 – Corrosion Under Insulation and Fireproofing
2. NACE SP0198-2017 – Control of Corrosion Under Thermal Insulation and Fireproofing Materials
3. API Standard 580 – Risk-Based Inspection
4. API Recommended Practice 581 – Risk-Based Inspection Methodology
5. ISO 18211:2016 – Non-destructive testing — Long-range inspection of above-ground pipelines and plant piping using guided wave testing with axial propagation
6. ASTM E1934-99 – Guide for Examining Electrical and Mechanical Equipment with Infrared Thermography
7. ASTM E750-20 – Practice for Characterizing Acoustic Emission Instrumentation
8. DNVGL-RP-A204 – Qualification and Assurance of Digital Twins
9. AMPP Technical Resources – Emerging Technologies for CUI Inspection
10. API 584 – Integrity Operating Windows

Author: Ahmed Montaser
