Ultrasonic NDT

Thickness logging with D-50

Published on 22nd October 2020

Thickness logging with D-50

The T-log feature of the Sitescan D-50 allows users to record multiple thickness measurements of a corroded area

The Sitescan D-50 offers end users an entry-level broadband flaw detector in the popular and portable casing of the renowned D-Series product line. The T-log feature of the Sitescan D-50 allows users to record multiple thickness measurements of a corroded area. The data can be saved and then exported into a CSV file format. A more advanced assessment based on the API 579 standard can then be performed. Other advanced features, such as an envelope, T-min and echo-to-echo measurements are available with this equipment.


Fig. 1: Sitescan D-50

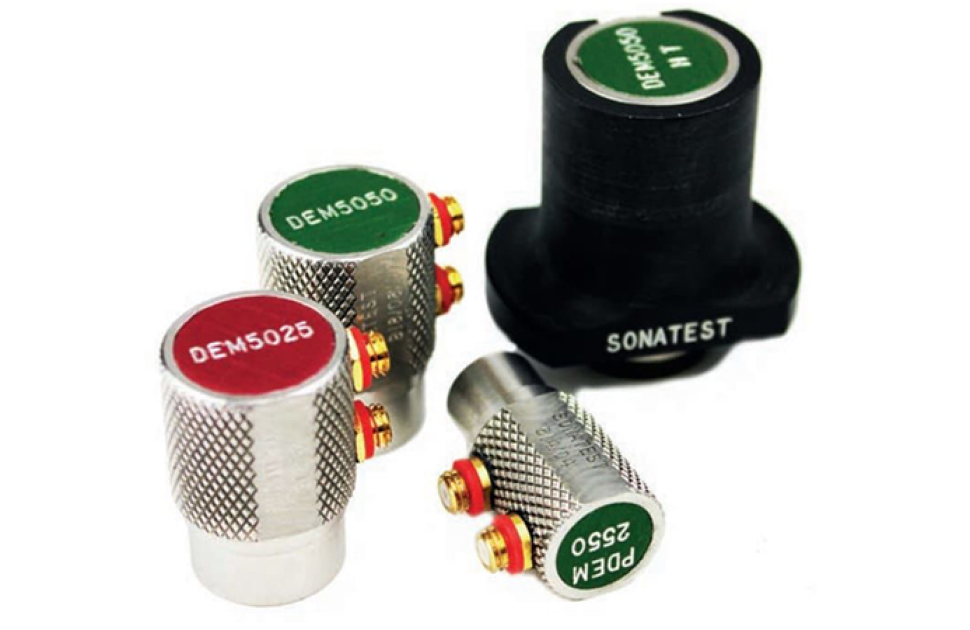

Fig. 2: DEM & PDEM probe series
Recommended Package


Frequency recommendations according to the thickness (T):

T > 50mm = 2.25MHz

15mm < T < 30mm = 5MHz

2mm < T < 15mm = 10MHz

Industries & Markets

  • Nuclear
  • Oil & Gas
  • Pipeline integrity service

Typical Inspection Applications

  • Boiler tubes
  • Bore pipes
  • Heat exchanger
  • Pressure vessels
  • Flare stacks

Features & Benefits

  • Defect Sizing tool
  • 18 hour battery life
  • Rugged

For further information, please contact the Sonatest Sales Team: sales@sonatest.com
