System Performance Check for Mag Particle Benches

System Performance Check for Mag Particle Benches

According to ASTM E1444 and ASTM E3024 daily system performance checks are required. This article explains how to perform those checks.

By Brian Batteiger, Service & Custom Equipment Manager

The latest editions of ASTM E1444 and ASTM E3024 require daily system performance verification of MPI machines. To perform this test, customers can either use test parts with discontinuities or fabricated test parts with discontinuities.

If using test parts with discontinuities, the reference parts should have discontinuities that are similar to the type, location and size specified in the acceptance requirements. It is also critical to demagnetize and clean the parts after performing the test to prevent false test results.

Selecting a Test Piece

If customers are using fabricated test parts with artificial discontinuities, the discontinuity can either be the AS5371 notched shims or another type of flaw put into the part. The level 3 will determine the best method to use for this test.

With either method above, it is also critical to demagnetize the part and clean the part after completing the test. Demagnetization will prevent false results from residual magnetic fields and particles.

Using a Test Piece

If performing a 100% inspection of your parts (in both the circular and longitudinal directions), the AS5371 notched shim (known as a QQI) provides an easy method of creating a test part to be used by various operators. Care must be taken to mark the part in such a way as it does not get mixed into regular production parts – which has been known to happen. All four edges of the AS5371 notched shim must be sealed using tape or super glue. Inspectors can also use the self-adhesive type of AS5371 Notched Shims.

When using the AS5371 notched shim (QQI) care must be taken when handling the part and it must not be touched. The AS5371 notched shim (QQI) are only .002” or .004” thick and t it will cause the notched to wear out and “disappear”.

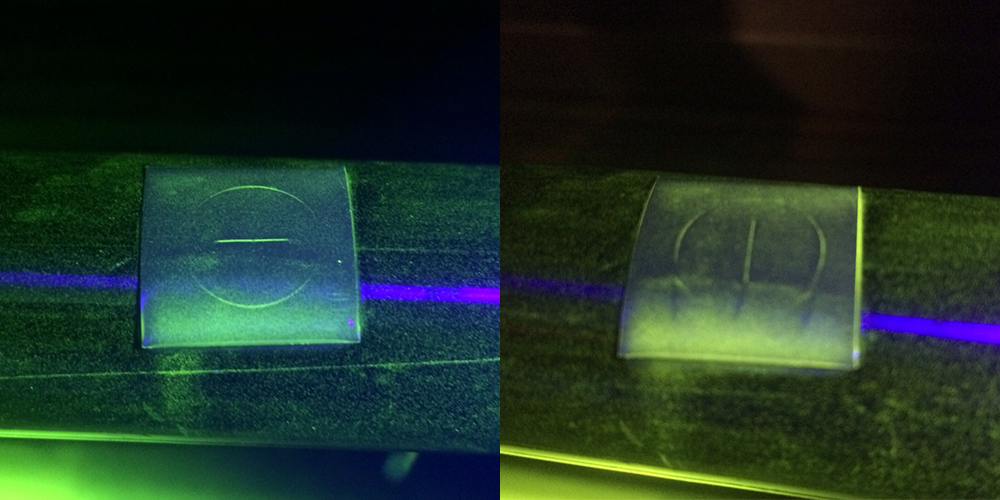

Figure 1 & Figure 2

Figure 1: AS5371 Shim Circular Direction  -   Note: The top of the circle, middle line, and bottom of the circle are of equal brightnesss

Figure 2: AS5371 Shim Longitudinal Direction   -   Note: The sides of the circle and the middle line are of equal brightnesss

In this article, Magnetic Particle Inspection Flux Indicator Strips and Quantitative Quality Indicators (QQI) are defined and given a user manual approach to find artificial flaw standards

Planning a System Performance Check Schedule

Magnaflux recommends that customers perform the system performance test once the pump has been running for 20 – 30 minutes and after the settling test is complete. For operation running 24/7 and maintaining settling test records, the system performance check can be performed when oncoming shift operators take over. Some operations perform the test at the beginning of the shift and after the operator comes back from the meal break. Performing the test multiple times provides a “window” of what parts they may have to retest should the test reveal issues.

Conclusion

The key to performing the system performance test is to know what results you are expecting; then if the results are different than expected, what are the possible causes of the poor results.

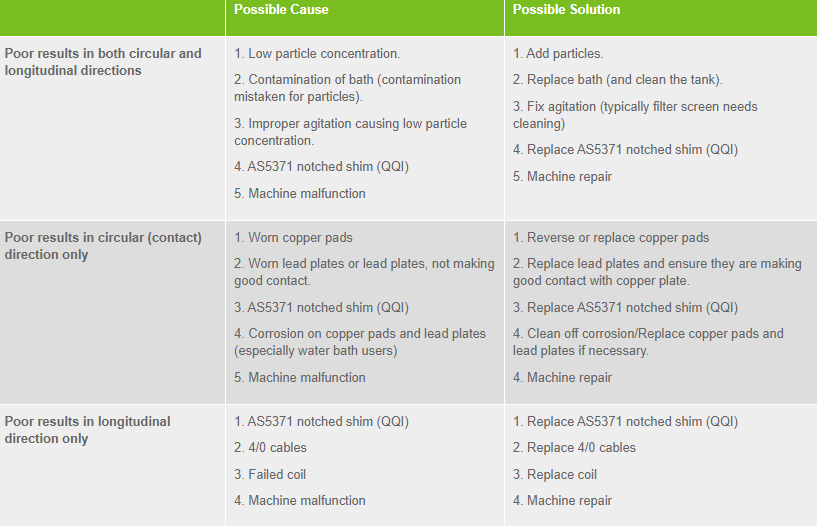

Below is a table for quick reference of some of the most common causes of poor results and the solutions:
